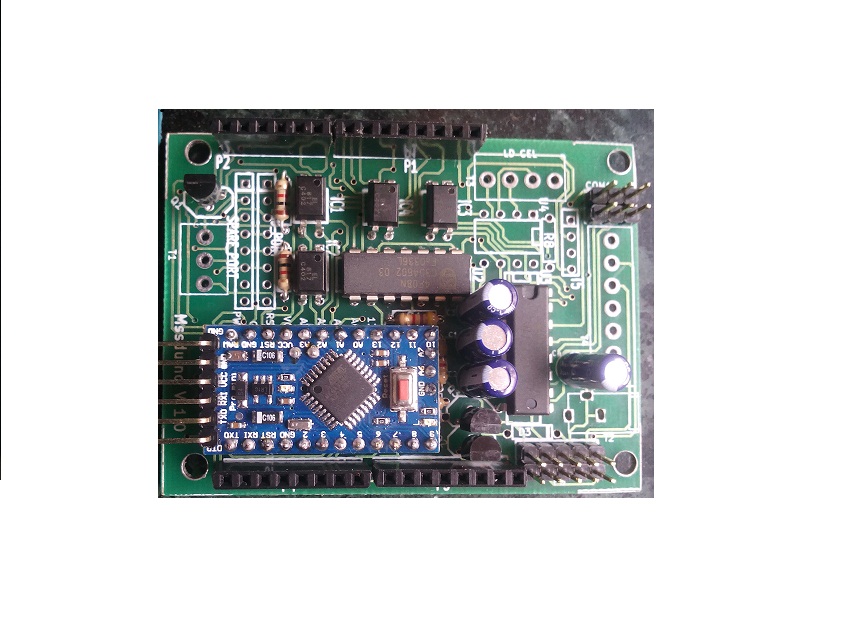

MSDuino Hardware Platform

 MSDuino is a hardware microcontroller based hardware platform compaitable with Arduino. We undertake development of embedded software as per customer's requirement. This module can be used for almost any applications suitable for industrial automation. However, anyone can write their ownapplication using standard libraries supported by arduino forum.

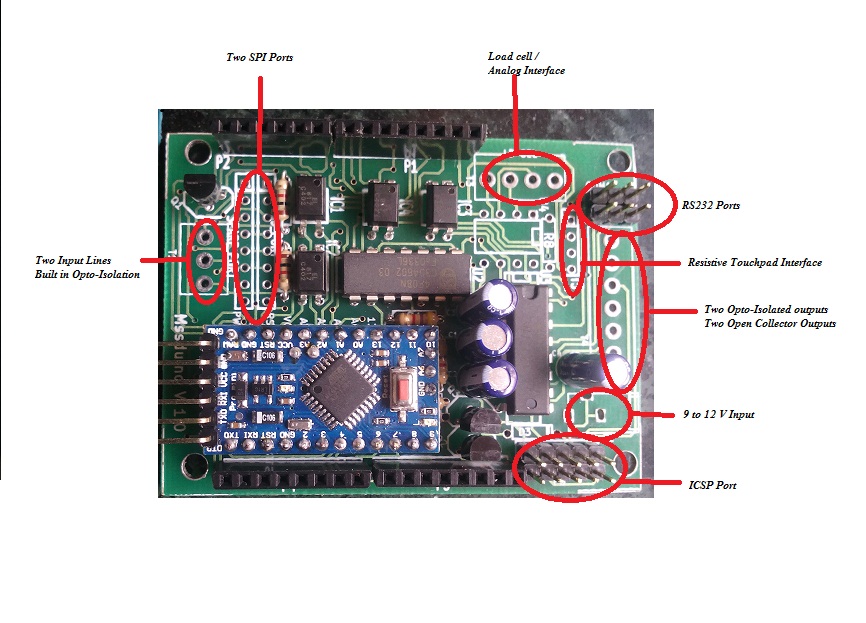

  1. MSSDuino Hardware Platform
    Description Standard Version Optima Version Analog Version
    Processor Atmenga328 @ 16Mhz Yes Yes Yes
    Program Area 32KB 32KB 32KB
    RAM 2KB 2KB 2KB
    EEPROM 1KB 1KB 1KB
    Opto-Isolated Intrrupt driven Input lines 2 2 2
    Opto-Isolated Output  lines 2 2 2
    Open Collector Output lines 2 2 1
    RS232Port (Shared /software controlled) 2 2 2
    Loadcell /Analog Interface NA NA Yes

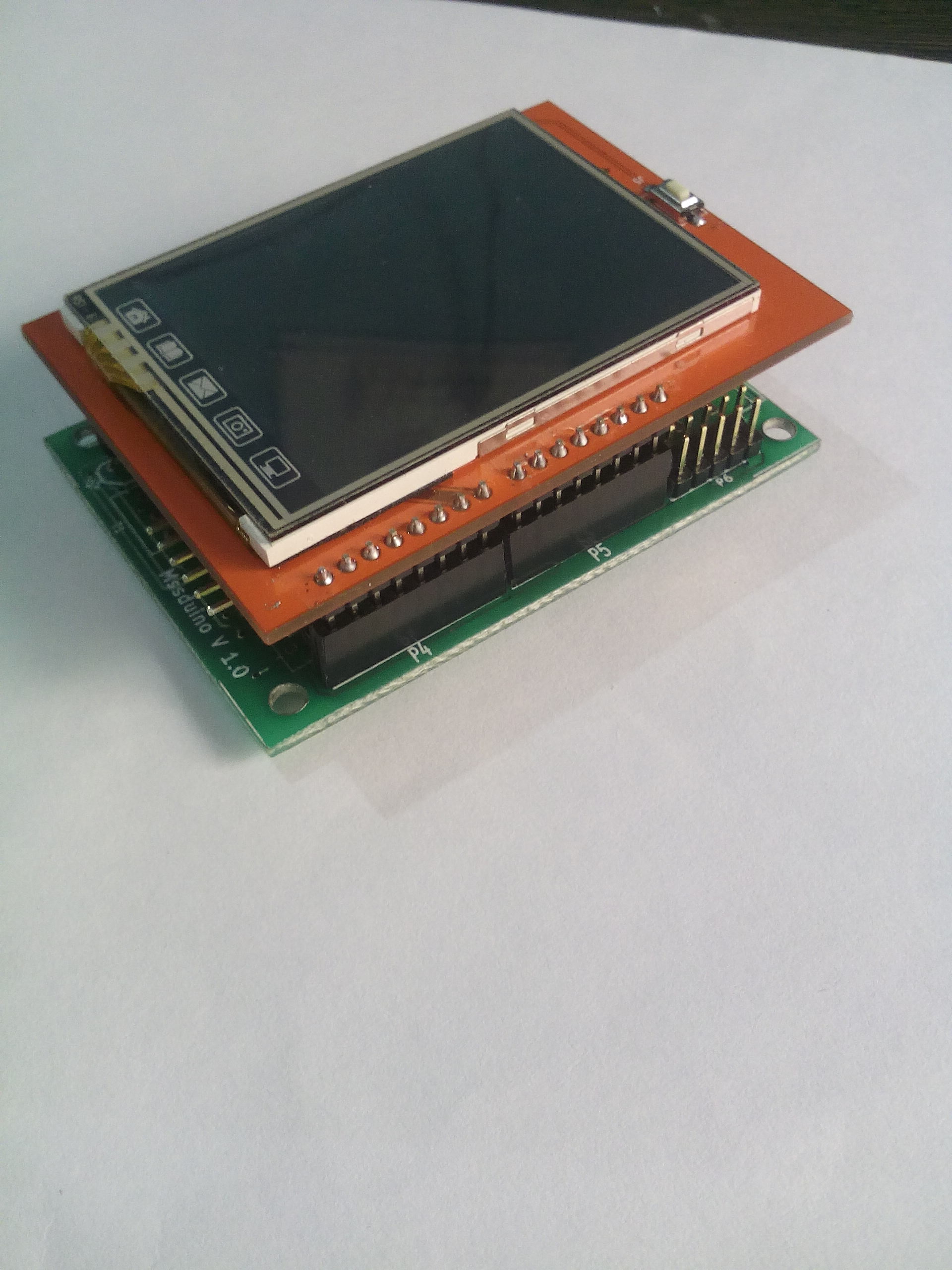

    Display 15 extra IO lines if Not Using Display 2.4" TFT Color Optional
    Keyboard-Resistive Touch -Custom Layout Optional  Touch Screen Optional
    In-Circuit Programming Port (2x5 Port) Yes Yes Yes
    Programming through USB  (USB to FTDI) Yes -Using external programmer Yes -Using external programmer Yes -Using external programmer
    SPI Ports  2 1 2
    Power 9V- 150mA 9V-200mA 9V-150mA
    Firmware - Supplied as Library Yes Yes Yes
    Application Software Custom Custom Custom
    Board Size 7.2cm x 5.3cm 7.2cm x5.3cm
